Nhà > các sản phẩm > Tàu lôi bùn > 6 Inch Full Hydraulic Small Mud Slurry Dredging Boat Compact

6 Inch Full Hydraulic Small Mud Slurry Dredging Boat Compact

Chi tiết sản phẩm

Place of Origin: china

Hàng hiệu: yongsheng

Model Number: csd150

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity: 1

Giá bán: 69000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Nhận được giá tốt nhất
Chi tiết sản phẩm
Làm nổi bật:

6 Inch Small Mud Dredging Boat

,

Mud Slurry Dredging Boat

,

Full Hydraulic Mud Dredging Boat

Customized:
customized
Condition:
new
Warranty:
1 year
Water Flow:
150-260 m3/h
Solid Capacity:
30 cbm/h
Max.Dredging Depth 45°:
4m
Discharge Distance:
600 m
Dredger After Assembly:
15.5*3.5*0.8m Length*width*depth
Dredger Structure:
Can Be Assembly in Working Site
Average Draught:
0.4 m
Diameter Discharge Pipe:
150mm/6inch
Total Power:
102 kw
Main Engine:
90 kw
Generator:
12 kw
Hydraulic Cutter Powerr:
15 kw
Customized:
customized
Condition:
new
Warranty:
1 year
Water Flow:
150-260 m3/h
Solid Capacity:
30 cbm/h
Max.Dredging Depth 45°:
4m
Discharge Distance:
600 m
Dredger After Assembly:
15.5*3.5*0.8m Length*width*depth
Dredger Structure:
Can Be Assembly in Working Site
Average Draught:
0.4 m
Diameter Discharge Pipe:
150mm/6inch
Total Power:
102 kw
Main Engine:
90 kw
Generator:
12 kw
Hydraulic Cutter Powerr:
15 kw
Mô tả sản phẩm

Full Hydraulic Small Mud Slurry Dredging Boat For Sale

Cutter suction dredger is widely used for sand dredging, mud dredging, port building and deepening,

the sand dredger can produce certain amount of vacuum, the sand and mud is conveying and discharging

by pipeline and floater.
Cutter suction dredger can be self-propelled or non self-propelled. The hull can be dismantle and box-like

structure. The dismantle type can be assembly at working place easily and be transported by road,

railway and container accordingly. The sand dredger is very convenient to install and move in the

working place.  The power system of sand dredger can be electric system or diesel engine driving

system according to customers’ requirements.


Model list for hydraulic cutter suction dredger
Model Inch

Diameter

pipe

Water

flow

Solid
capacity

Total

power

Dredging

depth

Discharge

distance

YSCSD150 6 Inch 150 mm 260 m3/h 30 cbm/h 102 KW 4m 600 m
YSCSD200 8 Inch 200 mm 600 m3/h 80 cbm/h 213 KW 6m 800 m
YSCSD250 10 inch 250 mm 1,000 m3/h 160 cbm/h 367 KW 8m 1,100 m
YSCSD300 12 inch 300 mm 1,500 m3/h 240 cbm/h 591 KW 10 m 1,100 m
YSCSD350 14 inch 350 mm 2,400 m3/h 360 cbm/h 971 KW 12m 1,200 m
YSCSD400 16 Inch 400 mm 3,000 m3/h 500 cbm/h 1,057 KW 14m 1,400 m
YSCSD450 18 Inch 450 mm 3,500 m3/h 700 cbm/h 1,462 KW 15m 1,500 m
YSCSD500 20 Inch 500 mm 3,800 m3/h 760 cbm/h 1,648 KW 15m 1,600m
YSCSD600 24 Inch 600 mm 6,000 m3/h 900 cbm/h 2,511 KW 15m 1,800 m
YSCSD650 26 Inch 650 mm 7,000 m3/h 1,400 cbm/h 3,705 KW Max.18m 1,800m

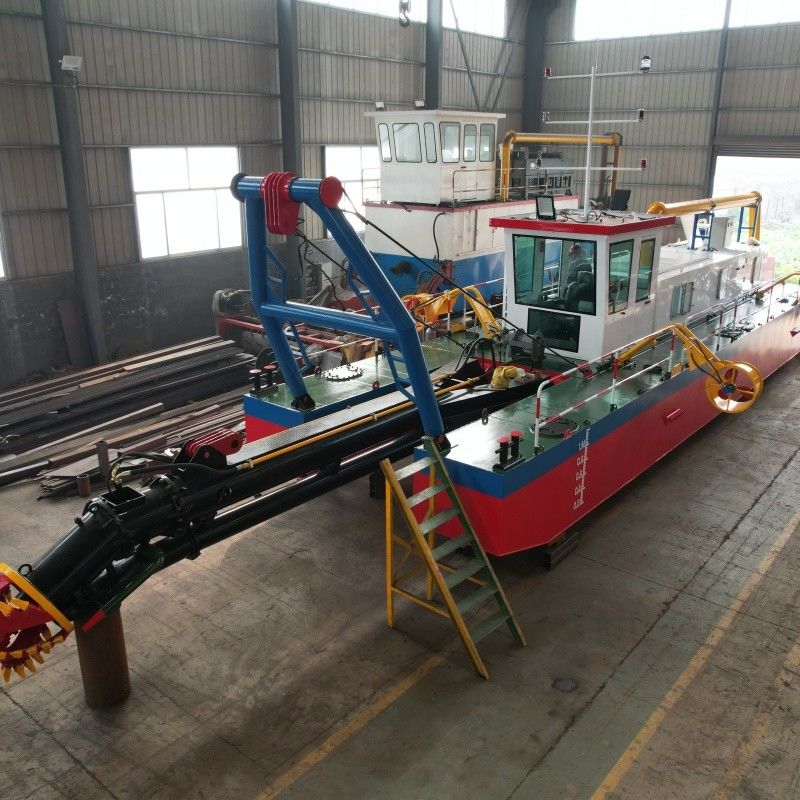

6 Inch Full Hydraulic Small Mud Slurry Dredging Boat Compact 0

6 Inch Full Hydraulic Small Mud Slurry Dredging Boat Compact 1

6 Inch Full Hydraulic Small Mud Slurry Dredging Boat Compact 2

Advantages:
Standard design, allowing early delivery and low price.
Completely assembled and fully tested before delivery.
Simple, rapid assembly and dismantling.
Ready for operation on arrival at site.
Spare parts available from stock.
Transportable by road, rail or sea.
Long-time after-sale service agreement with customers.
Rational and practical design according to customers' request.
Assemble and test the machine within the period as agreed in the contract.
Free repair if quality problems emerge.
Free training of operation and maintenance for customers.
High quality accessories in low price.
Long-term following-up service.


Company:

Shandong Yongsheng Dredging Machinery Co.,Ltd. is specializing in the production of dredging

equipment, sand suction dredgers, weed-cutting boat, water cleaning boats, sludge solidification

equipment, sand washing equipment, mineral processing equipment, etc.
Our company has 20 years of professional equipment production experience, passed the ISO9001

quality system certification, and is a member of China Dredging association.



FAQ:
 Need for reply:
1. How many cubic meter per hour for the clear water flow?

2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
