Chi tiết sản phẩm
Place of Origin: china
Hàng hiệu: yongsheng
Model Number: csd500
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1
Giá bán: 709000usd/piece
Packaging Details: Container
Delivery Time: 60 work days
Payment Terms: T/T,L/C
Supply Ability: 100piece/Year
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
3800m3/H |
Solid Capacity: |
760 Cbm/H |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
1600m |
Dredger After Assembly: |
47*8.8*2 .5m Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1 .6m |
Diameter Discharge Pipe: |
500mm/20inch |
Total Power: |
1648kw |
Main Engine: |
1193 Kw |
Auxiliary Engine Power: |
425kw |
Generator: |
30kw |
Hydraulic Cutter Powerr: |
220kw |
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
3800m3/H |
Solid Capacity: |
760 Cbm/H |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
1600m |
Dredger After Assembly: |
47*8.8*2 .5m Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1 .6m |
Diameter Discharge Pipe: |
500mm/20inch |
Total Power: |
1648kw |
Main Engine: |
1193 Kw |
Auxiliary Engine Power: |
425kw |
Generator: |
30kw |
Hydraulic Cutter Powerr: |
220kw |

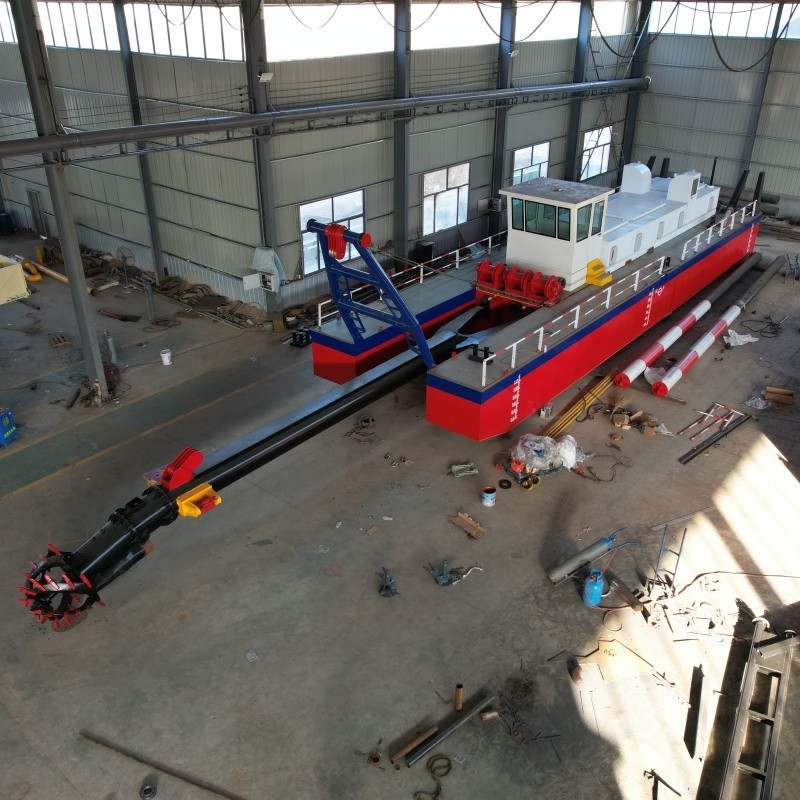

1.Product Description
1)Reliable hydraulic system with self-protection, high efficiency and low cost.
2)Simple, rapid assembly and dismantling, a good underwater dredging machine.
3)We can produce 4"inch to 24"inch dredgers with max. dredging depth 25m. The dredger can be customized.
4)Has passed ISO9001, CE ,CCS certificate & The Certification of the Survey.
5)Adapt submerged arc welding technology, strong stability and beautiful in design.
6) Special marine steel plate, strong & durable.
7) Pump & gear box combined together, reduce the maintenance.
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch |
Diameter pipe |
Water flow |
Solid capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
